When buying an e-bike, people think about the motor, battery, and range – but hardly anyone asks about the charging port first. Yet its location significantly determines how convenient charging is in everyday life. This article shows what options are available, what the differences mean, and what you should consider when buying one.
Where is the charging port located on an e-bike?
There are essentially three positions where you can find the charging port of an e-bike:

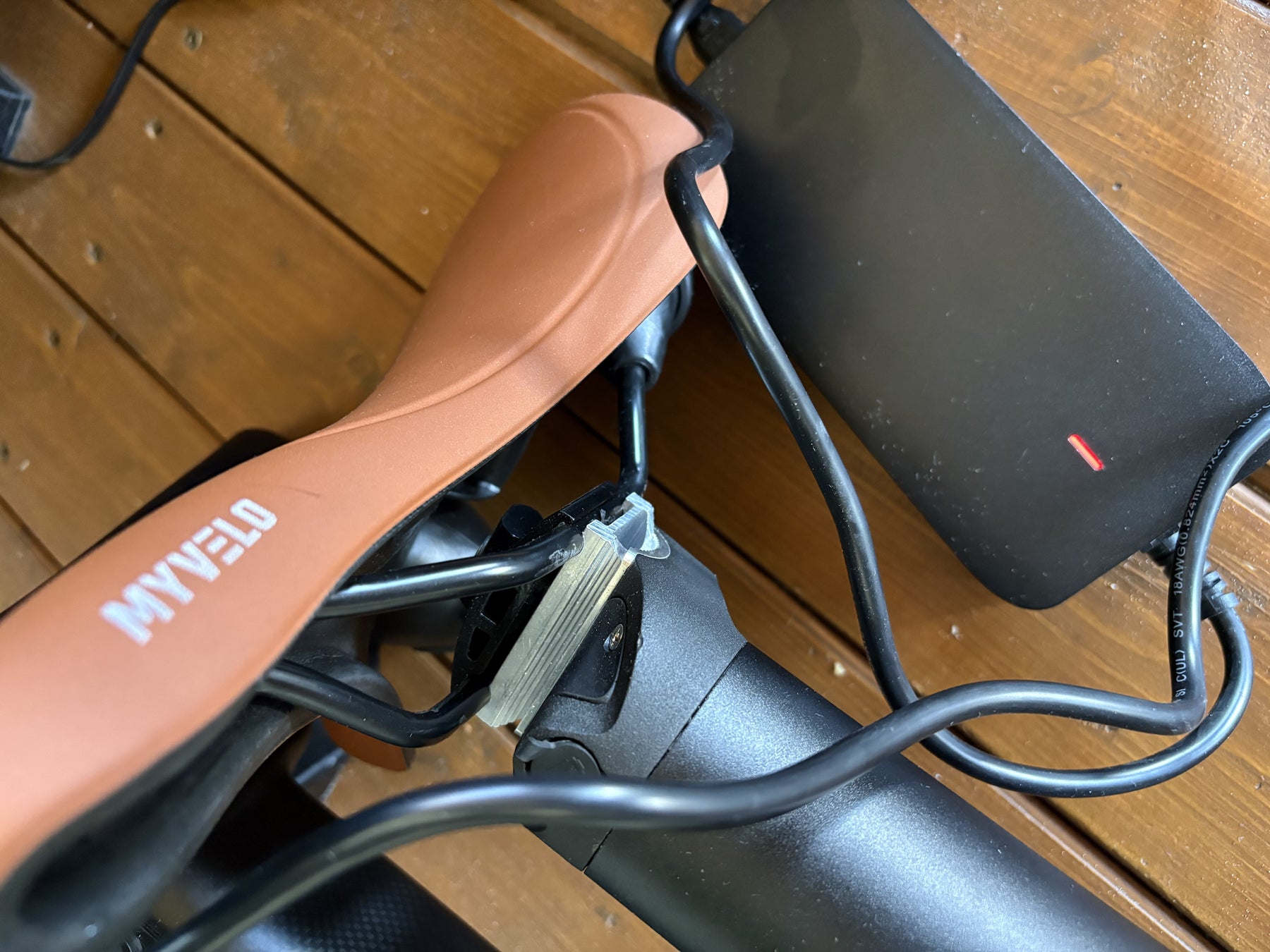

1. Integrated within the framework
On modern e-bikes – especially folding e-bikes and high-quality everyday bikes – the charging port is integrated directly into the frame. It is usually located on the side of the down tube or seat tube, often behind a small rubber cover or flap.
The advantage: You plug the charging cable directly into the bike – without removing the battery. Charging works just as easily as with a smartphone.
2. On the battery itself
Many e-bikes have the charging port directly on the battery housing. This means that to charge, you either have to leave the battery on the bike and plug the cable in from the side – or remove the battery and attach it separately to a charger.
This is uncomplicated in many situations, but has noticeable disadvantages in everyday life (more on that in a moment).
3. External socket on the frame (older models)
On older or simpler e-bikes, the charging port is sometimes mounted externally on the frame without a special cover. Such solutions are less weather-protected and appear technically unfinished – they are rarely found on current models.
Why position is crucial when buying
Everyday convenience
Those who use their bike daily charge it daily or every other day. If charging means unlocking the battery, removing it, carrying it into the apartment, plugging it in, bringing it back, reinserting it, clicking it into place, and locking it – then a simple routine task becomes a real hassle.
A charging port integrated into the frame makes charging as easy as plugging in a power adapter: connect the cable, and you're done. This is especially relevant if the bike isn't stored in the apartment, but in the basement, garage, or backyard.
Security
If you have to remove the battery for charging, the bike will be missing a component in the meantime – and a locked bike will only protect the bike, not the battery in your bag.
With an integrated charging system, the battery remains permanently attached to the bike, secured and installed. The cable simply runs from the socket to the wall outlet – safely and discreetly.
Weather protection
The charging port is an electrical contact point. Moisture, dust, and dirt can cause damage over time. A well-integrated frame port with a high-quality protective cap is significantly more robust than an exposed port directly on the battery.
When buying, look for a sturdy rubber cover or a retractable flap that reliably protects the socket even in rain and dirt.
Ergonomics and accessibility
Not every position is equally accessible. A bushing located low on the frame or on the far side can be inconvenient – especially in poor lighting conditions or when wearing gloves in winter. Ideally, a bushing should be at eye level, on the side of the downtube, or easily accessible on the seat tube.
aesthetics
Integrated charging ports simply look better. They blend into the overall design of the bike instead of looking like a technical tack on the surface. Anyone who values a clean design will be much happier with frame integration.
Comparison at a glance
| feature | Integrated within the framework | On the battery |
|---|
| Charging without removing the battery | ✅ Yes | ❌ No (or cumbersome) |
| The battery remains securely attached to the wheel. | ✅ Yes | ❌ Possibly not |
| Weather protection | ✅ High (with cover) | Variable |
| Everyday comfort | ✅ High | Medium |
| Design integration | ✅ Clean | Visible |
| Distribution in new models | Increasingly standard | Still frequently |
What you should specifically check when buying
1. Can I charge the bike without removing the battery?
That's the most important question. Check the datasheet or ask directly – many manufacturers don't state this clearly.
2. Where exactly is the socket located?
Pictures are often not enough. Ask for the exact position on the frame and whether there is a protective cover.
3. Which plug is used?
The most common standard is the so-called XLR connector (3-pin) or a manufacturer-specific round connector. It's important that the charger is compatible – and that replacement chargers are available.
4. How long is the charging cable?
Short cables (under 1.5 m) can be inconvenient in many everyday situations – especially if the power outlet is not directly next to the parking space.
Conclusion
The position of the charging port might seem like a minor detail, but in everyday use it's one of the most noticeable differences between a convenient and a cumbersome e-bike. Anyone who charges daily quickly notices whether charging becomes a ritual or a tedious process.
Modern e-bikes with integrated frame sockets have a clear advantage here: charging is easy, the battery remains protected and secure, and the bike looks good in the process. When buying your next e-bike, it's worth consciously considering this feature before deciding on a model.
