Belt drive

What is a belt drive?

A belt drive is a machine element used to transmit power from one rotating body (the drive motor) to another (the drive wheel). There are different types of belt drives, such as V-belts, timing belts and flat belts.

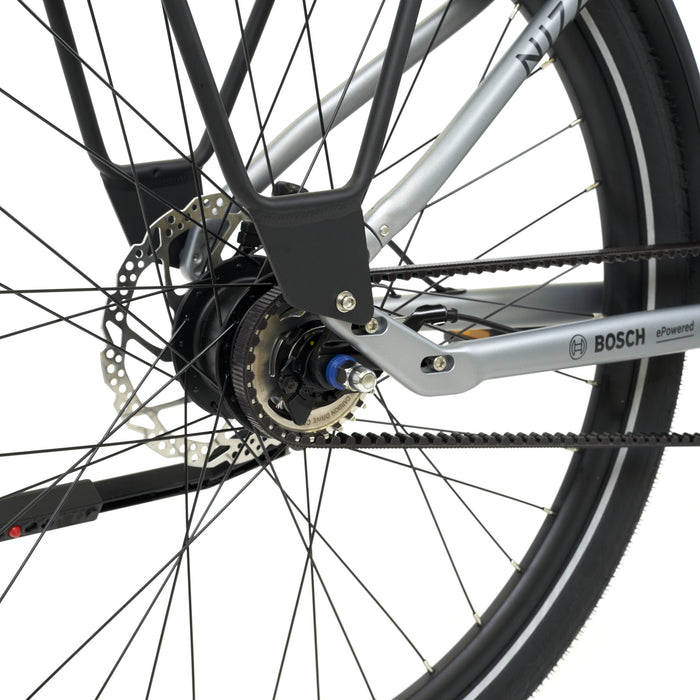

A belt drive on an e-bike is a popular choice because it is a quiet and low-maintenance alternative to a chain drive. It is also less prone to failure and requires less maintenance than a chain drive. This makes it particularly attractive for people who frequently use their e-bike in urban environments or for people who value durability and reliability.

Types of Belt Drives

1. V-belts : V-belts are the most commonly used belt drives. They are made of rubber or polyurethane and have a wedge shape that allows high power transmissions to be achieved with low friction losses. However, they are more susceptible to wear and shifting.
2. Timing belts : Timing belts are similar to V-belts, but instead of a wedge shape they have teeth that mesh with the gears of the drive motor and the drive wheel. They allow for greater power transmission than V-belts and are less prone to shifting, but also more prone to wear.
3. Flat belts : Flat belts are made of rubber or polyurethane and have a flat shape. They are often used in machinery such as machine tools, printing machines and textile machinery. They are less prone to shifting than V-belts, but also less efficient.

Advantages of belt drives

• Belt drives enable efficient power transmission from one rotating body to another.
• Belt drives can be easily adjusted to meet different rotation speeds and power transmission requirements.
• They require less maintenance compared to other types of drives.

Disadvantages of belt drives

• They are susceptible to wear and tear and therefore need to be replaced regularly.
• Belt drives can shift and thereby impair power transmission.

What should be considered with a belt drive?

Choosing the right frame: Not all bicycle frames are compatible with a belt drive . The frame must have a special design that allows the belt to be inserted and tightened.
Adjusting the gear: Belt drives work best with hub gears or special gearboxes. It is important to choose a compatible one in order to fully exploit the advantages of the belt drive.
Regular inspection: Although belt drives are low maintenance, regular inspection for wear and damage is important to ensure optimal performance.

Alternatives to belt drive

Chain drive: The traditional and widely used drive that offers compatibility with a wide range of bikes and transmissions.

Tip: A good addition to the belt drive can be a hub gear, which enables smooth and low-maintenance operation.
