Smartphonehalterung

Bosch SmartphoneGrip Retrofit Kit

Q: Does the SmartphoneGrip also work in rain or splashes of water?

The grip is IP54 certified It's splash-proof and dustproof. You can use it without worry in light rain or on wet roads. Complete immersion in water or heavy rain should be avoided to prevent damage to the smartphone or the grip itself.

€99,90

€99,90 - €99,90

€99,90

€99,90 - €99,90

VAT included.
incl. FREE shipping & free returns

14-17 Tage Lieferzeit

Quantity

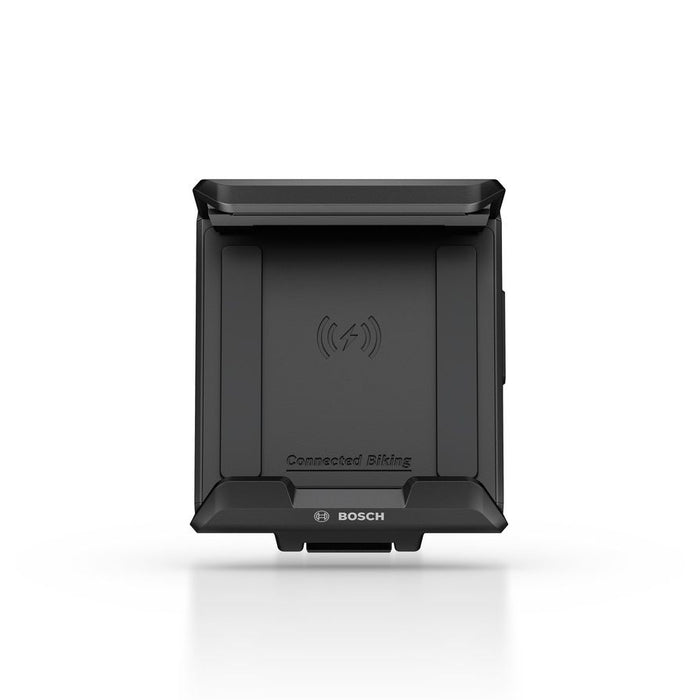

Bosch SmartphoneGrip Retrofit Kit – Smartphone Integration for E-Bikes

The Bosch SmartphoneGrip retrofit kit consists of the SmartphoneGrip (BSP3200) and the matching arm mount (BDS3620) for 31.8 mm handlebars, allowing you to securely attach your smartphone to your e-bike handlebars and use it as a central display. In combination with the Bosch Smart System and the eBike Flow app, the SmartphoneGrip transforms your smartphone into a fully functional e-bike display with all relevant riding data.

Features & Properties

The SmartphoneGrip connects your e-bike to the Bosch digital world and provides you with all the important information at a glance while riding: navigation data, speed, battery charge level, remaining range, and other system data via the Flow app. The device is suitable for most modern smartphones with the following dimensions, including camera and case: height 6.8–13 mm , width 67–88 mm , length 123–175 mm , with a maximum total weight of 276 g . Flip cases and bulky cases are not supported.

Charging functions

The SmartphoneGrip offers two charging options :

Inductive charging (wireless): up to 7.5 W (1.5 A @ 5 V) – for smartphones with Qi function
Micro-USB charging: up to 5W (1A @ 5V) via the USB port if your smartphone does not have a wireless charging function.
On the side of the grip is an LED charging indicator that visually displays the current charging process and charge level.

System integration

The SmartphoneGrip is compatible with all Bosch e-bikes that use the Smart System . It is mounted directly to the handlebars using the included display holder. If a Bosch Smart System display such as the Kiox 300 is already installed, the SmartphoneGrip can be easily replaced without an additional adapter.

Assembly & Operation

Installation is done via the Bosch display or the single-arm mount. After mounting, you attach your smartphone to the grip and open the Bosch eBike Flow app – and you can now use your smartphone as your central eBike display. Thanks to the rubberized contact surfaces, the device stays securely in place even during normal road or gravel rides. The SmartphoneGrip is not designed for very rough trails or jumps.

Technical data

Compatible smartphone dimensions: Height 6.8–13 mm, Width 67–88 mm, Length 123–175 mm
Maximum carrying weight: 276 g including cover
Charging power: 7.5 W inductive / 5 W USB
Protection class: IP54 – protected against splashing water and dust
Operating temperature: -5 °C to 40 °C, storage temperature: 10 °C to 40 °C
Weight: approx. 75 g
Color: Black

Scope of delivery

Bosch SmartphoneGrip (BSP3200)
Screw with key lock (EB1320004N)
1-arm holder for 31.8 mm handlebar diameter (BDS3620)
Display interface with cable connection at the rear
Display cable
Mounting accessories
Operating and assembly instructions

A wheel that moves – on the road and in the heart

One small step for every step

With every MYVELO you buy, you give us the opportunity to donate €10 to the ASHA Primary School in Nepal. Every cent goes directly to the school. And the administration is run entirely by volunteers. So far, donations have enabled the construction of a school and ensure that the schoolchildren receive at least one hot meal every day.

Learn more now

We didn't reinvent the wheel, we rethought it.

We (Fabian & Vince) have poured our decades of experience into our bikes because we know exactly what they need to offer. For us, quality, functionality, and durability aren't questions, they're the answer. At a fair price, you get performance and quality from us that you won't find anywhere else.

Learn more now

We didn't reinvent the wheel, we rethought it.

Further information and FAQs about dem Bosch SmartphoneGrip

Get advice from cycling enthusiasts

Can I use the SmartphoneGrip on different handlebar diameters?

Yes, the SmartphoneGrip itself is attached to the handlebars using the appropriate arm mount. The mount is standard for... 31.8mm handlebars designed, but there are also adapters or variants for 35mm handlebars, so that it can be flexibly mounted on different types of bicycles.

Can the SmartphoneGrip be used in conjunction with handlebar accessories such as bicycle computers or lights?

Yes, the SmartphoneGrip can be used in most cases with handlebar accessories such as Bosch displays, lights, or bike computers. The flexible arm mount allows you to adjust the angle so that the smartphone is clearly visible without obstructing other devices.

Does the SmartphoneGrip also work in rain or splashes of water?

The grip is IP54 certifiedIt's splash-proof and dustproof. You can use it without worry in light rain or on wet roads. Complete immersion in water or heavy rain should be avoided to prevent damage to the smartphone or the grip itself.

Can I use my smartphone while driving without removing it from the holder?

Yes, the SmartphoneGrip allows you to operate your device directly from the handlebars. You can launch apps, use navigation, or answer calls without removing the device. Thanks to its stable mount, the smartphone remains secure, even when cornering on paved roads.
